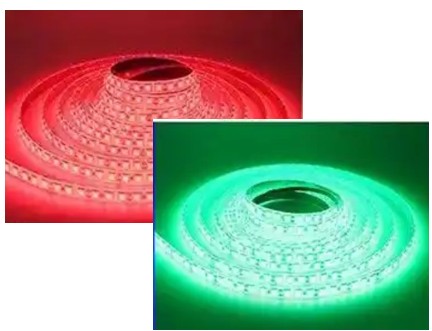

SMD strip 76 – green and red, 10mm- IP65- 5m roll – 12V 12W 60 LED/M
Built from the highest specification components for commercial applications with typical long hour usage. Accurate and consistent colour temperatures. 3M VHB (Very High Bond) adhesives used on all professional strips.
- High strength 2835 SMD
- True colour rendering
- IP65 Silicon (Non Epoxy) Low Heat Cover
- Various Colour Range: DL/CW/WW/
- Blue/Green/Red/Orange
- 60 LED/m
- Double PCB
- 115° Beam Angle
- IP65 & IP20
- 3M VHB Red Tape
- Pre-wired
- Constant Voltage
- CE, ROHS & UKCA approved
Technical Information
| Product Code | Voltage | Length | Colour Temperature | Wattage/m | Lumen Flux (Lm/m) | CRI | IP Rating |
| LST75DL | 12V | 5m/roll | 6500K | 11.28W/m | 710lm/m | >80 | IP65 Silicon |
| LST76WW | 12V | 5m/roll | 2800K | 12W/m | 765lm/m | >80 | IP65 Silicon |
| LST76CW | 12V | 5m/roll | 4500K | 12W/m | 850lm/m | >80 | IP65 Silicon |
| LST76RD | 12V | 5m/roll | Red | 12W/m | 131lm/m | >80 | IP65 Silicon |
| LST76GR | 12V | 5m/roll | Green | 12W/m | 722lm/m | >80 | IP65 Silicon |
| LST76BL | 12V | 5m/roll | Blue | 12W/m | 154lm/m | >80 | IP65 Silicon |
| LST76OR | 12V | 5m/roll | Orange | 12W/m | 80lm/m | >80 | IP65 Silicon |
| LST75K24 | 12V | 5m/roll | 2400K | 12W/m | 880lm/m | >80 | IP20 |
Packaging Information
| Individual | Outer Carton | |||||
| Product Code | Barcode | Qty / Carton | Weight | Dimensions L X W X H | Weight | Dimensions L X W X H |
| LST75DL | 5060306470094 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76WW | 5060306472609 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76CW | 5060306472616 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76RD | 5060306472661 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76GR | 5060306472678 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76BL | 5060306472654 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST76OR | 5060306470155 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 7kg | 45 x 25 x 26 cm |
| LST75K24 | 5060306472142 | 30pcs | 198g | 20.5 x 1.5 x 22 cm | 6.3kg | 45 x 25 x 26 cm |
Price range: £10.00 through £15.30
